1 Application range

This series of relays are used in relay protection and automatic control circuits as action indication signals. There are multiple groups of different forms of contacts to meet the on-site signaling instructions and remote signaling requirements.

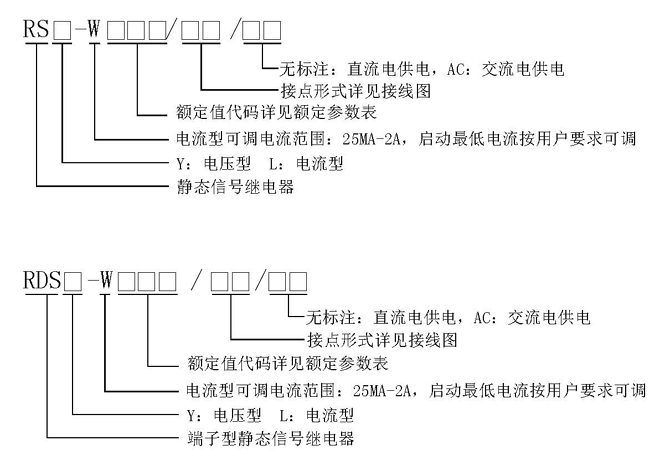

2 Model definition

3 main performance

3.1 Adopt high-performance sealed relay, moisture-proof, dust-proof, uninterrupted wire, high reliability.

3.2 The relay is bistable, magnetic retention, and the starting coil can be voltage type or current type. The reset coil is voltage type. The electric quantity triggering of the relay starting circuit can be a long pulse or a short pulse of not less than 20mS.

3.3 The relay has indicator lights to indicate signals, and the signals can be reset locally or remotely.

3.4 The electrical and mechanical life of the relay is long.

3.5 High insulation withstand voltage level, large contact capacity and low contact resistance.

4 Technical conditions

4.1 Environmental reference conditions

Environment temperature: 20±2℃

Relative humidity: 45%～75%

Atmospheric pressure: 86～106KPa

4.2 Normal use conditions

Ambient temperature: -10℃～+50℃

Relative humidity of environment: not more than 90%

Atmospheric pressure: 80～110KPa

Limit temperature during storage and transportation: -25℃～+70℃

The altitude of the place of use: no more than 2500 meters

The surrounding medium of the use environment has no explosion hazard; it does not contain corrosive gas; the concentration of conductive dust contained should not reduce the insulation level below the allowable limit value.

Reliable power supply.

4.3 Characteristic parameters

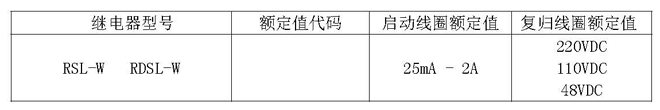

4.3.1 The rated parameters are as follows:

4.3.2 Action value and reset value: not more than 70% of the rated value.

4.4 Maximum power consumption

Voltage coil: not more than 6W under rated voltage 220VDC

Current coil: not more than 1.5W

4.5 Maximum capacity of contacts:

Cut-off load capacity: DC 250V or less, τ=5ms, inductive load 50W, resistive load 150W;

AC below 250V, load 1200VA;

Allow long-term connection current: 5A.

4.6 Insulation resistance: Use an open-circuit voltage 500V megger to measure the insulation resistance between the exposed non-charged metal parts or shells of the relays connected to each conductive terminal and should not be less than 10MΩ.

4.7 Insulation withstand voltage: each lead-out terminal to the housing locking screw can withstand a power frequency voltage of 2000V, and the same group of contacts can withstand a power frequency voltage of 1000V, which lasts for one minute without breakdown.

4.8 Anti-interference performance: meet the national GB6162-85 "Electrical Interference Test of Static Relays and Protection Devices" standard.

4.9 Electrical life: In the DC250V circuit, cut off the current τ=5ms, 50W, more than 104 times.

4.10 Mechanical life: The contact is 3 million times in no-load state.

5 Structure type (see the relay structure size diagram for details)

5.1 The wiring structure behind the embedded board AK01 rear view wiring diagram (subject to company product samples)

5.2 Embedded board rear wiring structure AK11, AP11 and protruding board front wiring AQ11 rear view wiring diagram (subject to company product samples)

5.3 JK-5/10Z structure rear view wiring diagram (subject to company product samples)

5.4 JK-5/10H structure rear view wiring diagram (subject to company product samples)

5.5 DZ-1 structure terminal block type terminal wiring diagram (subject to company product samples)

6 Use

6.1 Before energizing the relay, confirm whether the voltage level and current value of the connected relay are consistent with the actual parameters, otherwise the relay may be damaged; check whether the relay is damaged during transportation and storage, and the relay screw fasteners should not be loose; There are damaged parts, please contact us to replace them.

6.2 The relay needs to be wired according to the wiring diagram. Note that the polarity of the start coil (I or U) and the return coil (UF) cannot be reversed.

6.3 For AC signal relays, RYF depends on the AC voltage. When 380VAC, RYF=10KΩ/20W, when 220VAC, RYF=0.

7 Ordering instructions

When ordering, please specify the relay model, specification, quantity, starting coil rated voltage or current, reset rated voltage, structure code and other requirements.
