1 Application range

This series of intermediate relays are mainly used in the circuit of switch tripping, closing position monitoring, and power supply monitoring. It is especially suitable for the new 380V system imported switch circuit. This product has the characteristics of low starting current, high starting coil internal resistance, and common working voltage of AC and DC. .

2 Model definition

When the relay is equipped with M, the relay will act instantaneously when the power is turned on. When the power supply is not disconnected, the pulse delay will return automatically, and the delay time can be set (that is, the contact action time of the relay is a pulse time with adjustable width); When the time has not reached the set time, disconnect the power supply, and the relay will return instantly.

When the relay is equipped with S, the relay will act instantaneously after power-on, and will return with a delay after power-off. The delay time can be set.

3 main performance

3.1 Adopt high-performance sealed relay, moisture-proof, dust-proof, uninterrupted wire, high reliability.

3.2 The principle of integrated circuit is used to overcome the difficulty of contact adjustment of electromagnetic relays and the problem of low delay accuracy. It has good vibration resistance and reduces maintenance workload and labor intensity to a certain extent.

3.3 There will be indicator lights after the relay is activated.

3.4 The electrical and mechanical life of the relay is long.

3.5 High insulation withstand voltage level, large contact capacity and low contact resistance.

3.6 The product installation structure includes embedded board rear wiring and protruding board front wiring as well as standard 35mm rail type terminal block wiring, which is convenient for field installation and has strong versatility.

4 Technical conditions

4.1 Environmental reference conditions

Environment temperature: 20±2℃

Relative humidity: 45%～75%

Atmospheric pressure: 86～106Kpa

4.2 Normal use conditions

Ambient temperature: -10℃～+50℃

Relative humidity of environment: not more than 90%

Atmospheric pressure: 86～110Kpa

Limit temperature during storage and transportation: -25℃～+70℃

The altitude of the place of use: no more than 2500 meters

The surrounding medium of the use environment has no explosion hazard; it does not contain corrosive gas; the concentration of conductive dust contained should not reduce the insulation level below the allowable limit value.

4.3 Characteristic parameters

4.3.1 Operating voltage range: 220V, 110V, universal for AC and DC

4.3.2 Starting current: <1 mA, starting coil internal resistance: 200KΩ～1MΩ

4.3.3 Delay time range: 0.1s~0.9s, other delay ranges can be customized according to user requirements.

4.4 Maximum capacity of contacts:

Cut-off load capacity: DC 250V or less, load 60W;

AC 250V or less, load 500VA;

Allow long-term connection current: 2A.

4.5 Maximum power consumption: under 220V, not more than 1.5W.

4.6 Insulation resistance: Use an open-circuit voltage 500V megger to measure the insulation resistance between the exposed non-charged metal parts or shells of the relays connected to each conductive terminal and should not be less than 10MΩ.

4.7 Insulation withstand voltage: each lead-out terminal to the housing locking screw can withstand a power frequency voltage of 2000V, and the same group of contacts can withstand a power frequency voltage of 1000V, which lasts for one minute without breakdown.

4.8 Anti-interference performance: meet the national GB6162-85 "Electrical Interference Test of Static Relays and Protection Devices" standard.

4.9 Electrical life: The contact is more than 104 times under rated load.

4.10 Mechanical life: The contact is 3 million times under no load.

5 Structure type (see the relay structure size diagram for details)

5.1 Embedded board rear wiring structure AK11, AP11 and protruding board front wiring AQ11 rear view wiring diagram (subject to company product samples)

5.2 DZ-1 structure terminal block type terminal wiring diagram (subject to company product samples)

6. Use

6.1 Before energizing the relay, confirm whether the voltage level of the connected relay is consistent with the actual parameters, otherwise the relay may be damaged; check whether the relay is damaged during transportation and storage, and the relay screw fasteners should not be loose; if there are damaged parts , Please contact us to replace it for you.

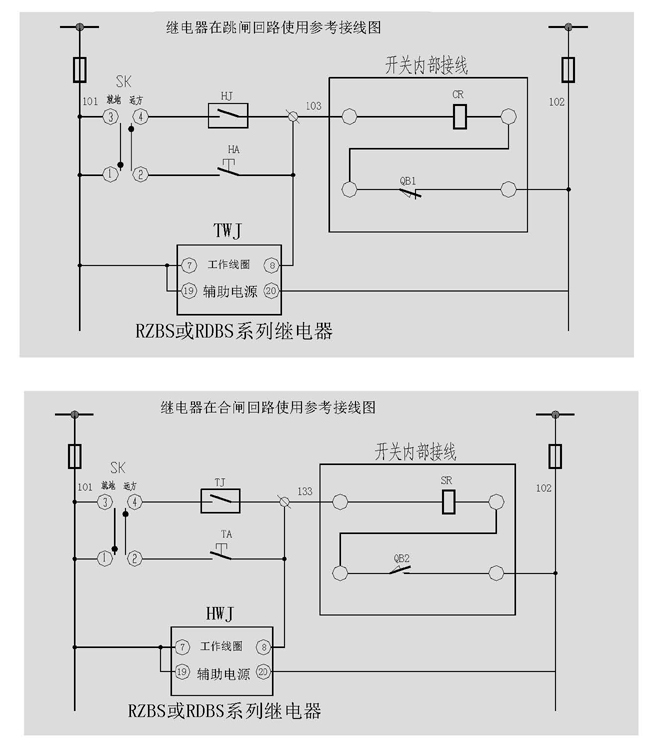

6.2 Reference Diagram of Relay Use Wiring

7 Ordering instructions

When ordering, please indicate the relay model specification, quantity, structure, rated voltage, delay range and other requirements.
